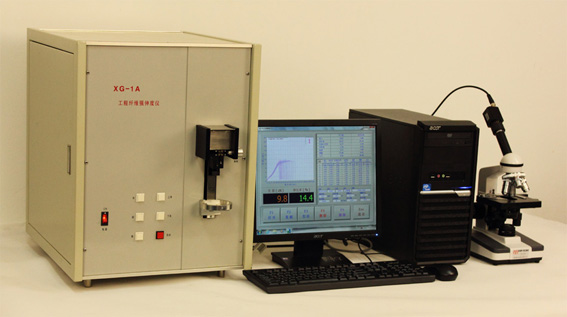

XG-1A Engineering Fiber Tensile Tester

   Introduction

      The XG-1A Engineering Fiber Tensile Tester is used to implement the tensile test of engineering staple fibers with the length less than 6 mm. The fiber diameter, measured with the XGD-1 Fiber Diameter Tester, is input into the apparatus to calculate the tensile strength per unit cross-section area of the fiber. The unit of strength and modulus is MPa.

   Technical Data

(a) Force measurement range:  0～100 cN

(b) Force error:  ≤±1%

(c) Force precision:  0.01 cN

(d) Extension measurement range:  100 mm

(e) Extension error:  ≤0.05 mm

(f) Elongation precision: 0.1%

(g) Test speed:  1～100, and 2～200 mm/min

(h) Lower clamp moving range:  100 mm

(I) Power:   220V～±10%

(J) Weight:  45kg

     (k) Size:      540×434×560 mm
