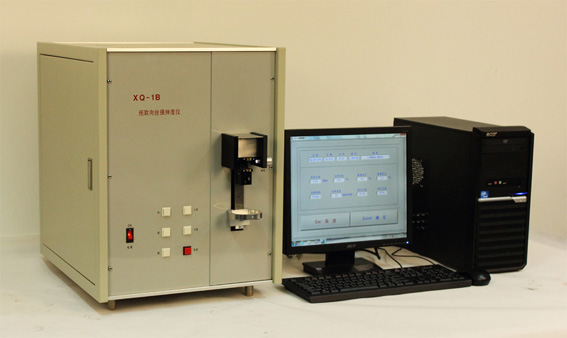

XQ-1B Pre-oriented Filament Tensile Tester




   Introduction

      The XQ-1B Pre-oriented Filament Tensile Tester is developed to meet the requirement of the quality control during the production of polyester staple fibers. The apparatus measures and calculates six indices, including the natural elongation, EYS1.5, natural extension ratio, maximum extension ratio, breaking force, and breaking elongation.

   Technical Data

(a) Force measurement range:  0100 cN

(b) Force error: ≤±1%

(c) Force precision: 0.01 cN

(d) Extension measurement range: 100 mm

(e) Extension error:  0.05 mm

(f) Elongation precision: 0.1%

(g) Test speed: 1100, and 2200 mm/min

(h) Lower clamp moving range: 100 mm

(I) Power:  220V~±10%

(J) Weight:  45kg

     (k) Size:  540×434×560 mm
