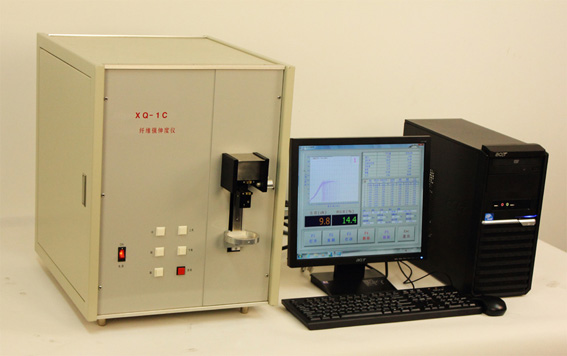

XQ-1C Fiber Tensile Tester

   Introduction

      The XQ-1C Fiber Tensile Tester is an updated product of the XQ-1 Fiber Tensile Tester. The operation of the tester is controlled by the computer, and during a tensile test the real time force-elongation curve is displayed on the computer screen. The measured data are analyzed and saved in the computer.

   Technical Data

(a) Force measurement range:   0�?/span>200 cN, 0�?/span>300 cN

(b) Force error:    ≤�?/span>1%

(c) Force precision:    0.01 cN ,  0.1 cN;

(d) Extension measurement range:  100 mm

(e) Extension error:   �?/span>0.05 mm

(f) Elongation precision:    0.1%

(g) Test speed:   1�?/span>100, and 2�?/span>200 mm/min

(h) Lower clamp moving range:  100 mm

(I) Power:     220V～�?/span>10%

(J) Weight:     45kg

     (k) Size:          540×434×560 mm
